CA-M中压接线片
铜导体中压电缆接线片
Series CA-M and 2A-M terminals are designed for medium voltage applications up to 35 kV. They are manufactured from Copper tube with a purity greater
产品型号
|

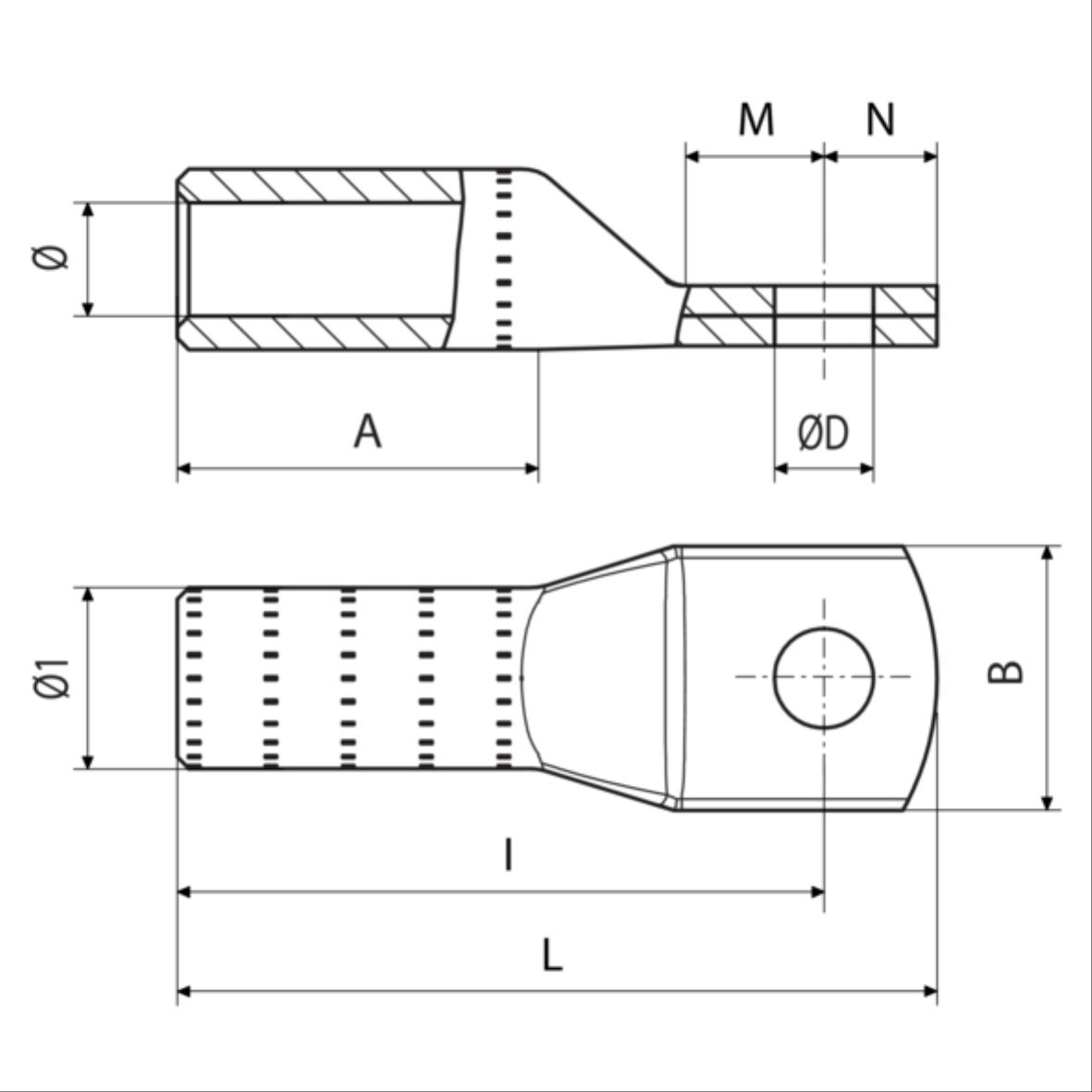

重量和尺寸 |
包装信息 |
类别和数据排列 |
|---|
|
tipo
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
海关编码
|
|---|
|
CA25-M8
|
M8
|
8.4
|
14
|
8
|
9
|
57
|
10
|
20
|
65
|
42
|
6.8
|
47
|
10
|
50
|
300
|
85359000
|
|
CA25-M10
|
M10
|
10.5
|
18
|
11
|
13
|
61
|
20
|
35
|
72
|
42
|
6.8
|
47
|
10
|
50
|
200
|
85359000
|
|
CA25-M12
|
M12
|
13.2
|
21
|
14
|
16
|
64
|
40
|
50
|
78
|
42
|
6.8
|
47
|
10
|
50
|
150
|
85359000
|
|
重量和尺寸 |
包装信息 |
类别和数据排列 |
|---|
|
tipo
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
海关编码
|
|---|
|
CA35-M10
|
M10
|
10.5
|
21
|
11
|
13
|
62
|
20
|
35
|
73
|
40
|
8.25
|
44
|
12.7
|
50
|
150
|
85369010
|
|
CA35-M12
|
M12
|
13.2
|
21
|
14
|
16
|
65
|
40
|
50
|
79
|
40
|
8.25
|
44
|
12.7
|
50
|
150
|
85369010
|
|
CA35-M16
|
M16
|
17
|
26
|
17
|
19
|
68
|
90
|
90
|
85
|
40
|
8.25
|
44
|
12.7
|
50
|
150
|
85369010
|
|
重量和尺寸 |
包装信息 |
类别和数据排列 |
|---|
|
tipo
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
海关编码
|
|---|
|
CA40S-M12
|
M12
|
13.2
|
21
|
14
|
16
|
65
|
40
|
50
|
79
|
40
|
8.25
|
44
|
12.7
|
50
|
100
|
85359000
|
|
CA40S-M16
|
M16
|
17
|
26
|
17
|
19
|
68
|
90
|
90
|
85
|
40
|
8.25
|
44
|
12.7
|
50
|
100
|
85359000
|
|
重量和尺寸 |
包装信息 |
类别和数据排列 |
|---|
|
tipo
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
海关编码
|
|---|
|
CA50R-M12
|
M12
|
13.2
|
20.5
|
14
|
16
|
65
|
40
|
50
|
79
|
40
|
8.7
|
44
|
12.7
|
50
|
100
|
85359000
|
|
CA50S-M12
|
M12
|
13.2
|
21
|
14
|
16
|
65
|
40
|
50
|
79
|
40
|
9.5
|
44
|
13.3
|
50
|
150
|
85359000
|
|
CA50S-M16
|
M16
|
17
|
26
|
17
|
19
|
68
|
90
|
90
|
85
|
40
|
9.5
|
44
|
13.3
|
50
|
100
|
85359000
|
|
技术信息 |
重量和尺寸 |
包装信息 |
类别和数据排列 |
|---|
|
tipo
|
电缆截面范围 [mm²]
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
海关编码
|
|---|
|
CA70S-M12
|
63 - 70
|
M12
|
13.2
|
28
|
14
|
16
|
67.2
|
40
|
50
|
81.2
|
40
|
11
|
44
|
20
|
15
|
30
|
85359000
|
|
CA70S-M16
|
63 - 70
|
M16
|
17
|
30
|
17
|
19
|
70.2
|
90
|
90
|
87.2
|
40
|
11
|
44
|
20
|
25
|
50
|
85359000
|
|
CA70-M12
|
70
|
M12
|
13.2
|
23
|
14
|
16
|
67.2
|
40
|
50
|
81.2
|
40
|
11.5
|
44
|
16
|
50
|
100
|
85359000
|
|
技术信息 |
重量和尺寸 |
包装信息 |
类别和数据排列 |
|---|
|
tipo
|
电缆截面范围 [mm²]
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
