AAD-M
Terminals type AAD..-M.. are made from Aluminium tube of a purity equal or greater than 99,5%. They are suitable for Aluminium conductors according to
产品型号
|
技术信息 |
重量和尺寸 |
包装信息 |
认证 |
|---|
|
tipo
|
电缆截面范围 (实心) [mm²]
|
电缆截面范围 (绞合) [mm²]
|
螺栓直径
|

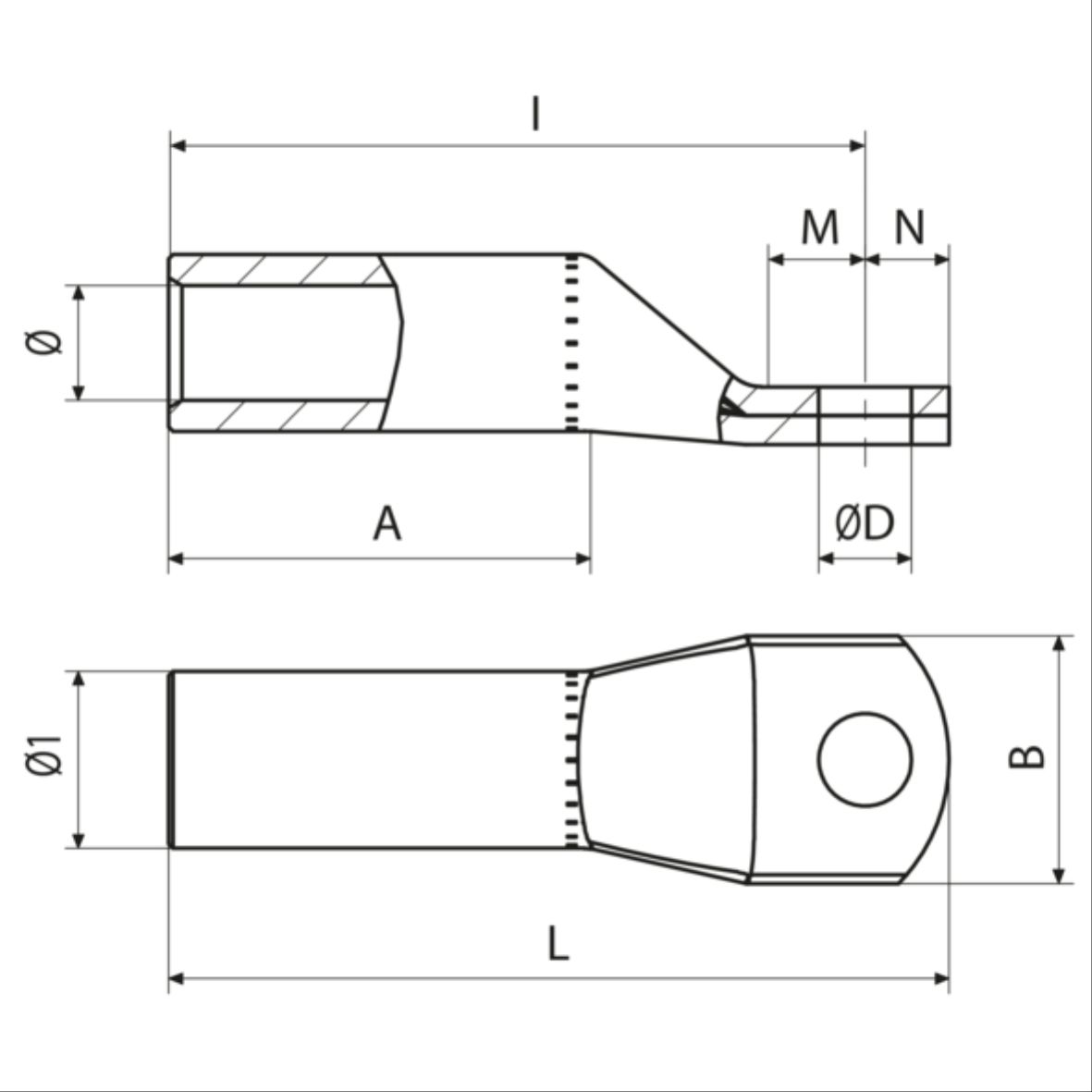

ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
符合ROHS标准
|
参考标准
|
|---|
|
AAD16-M8
|
25
|
16
|
M8
|
8.4
|
18
|
11
|
13
|
52
|
10
|
20
|
52
|
32
|
5.8
|
36
|
12
|
50
|
200
|
Yes
|
|
|
AAD16-M10
|
25
|
16
|
M10
|
10.5
|
18
|
11
|
13
|
52
|
20
|
35
|
52
|
32
|
5.8
|
36
|
12
|
50
|
200
|
Yes
|
|
|
AAD25-M8
|
35
|
25
|
M8
|
8.4
|
19
|
11
|
13
|
60
|
10
|
20
|
71
|
37
|
6.8
|
41
|
12
|
50
|
100
|
Yes
|
|
|
AAD25-M10
|
35
|
25
|
M10
|
10.5
|
19
|
11
|
13
|
60
|
20
|
35
|
71
|
37
|
6.8
|
41
|
12
|
50
|
100
|
Yes
|
|
|
AAD35-M8
|
50
|
35
|
M8
|
8.4
|
21
|
11
|
15
|
67
|
10
|
20
|
78
|
42
|
8
|
47
|
14
|
35
|
70
|
Yes
|
|
|
AAD35-M10
|
50
|
35
|
M10
|
10.5
|
21
|
11
|
15
|
67
|
20
|
35
|
78
|
42
|
8
|
47
|
14
|
35
|
70
|
Yes
|
|
|
AAD35-M12
|
50
|
35
|
M12
|
13
|
23
|
14
|
15
|
67
|
40
|
50
|
81
|
42
|
8
|
47
|
14
|
35
|
70
|
Yes
|
|
|
AAD50-M8
|
70
|
50
|
M8
|
8.4
|
25
|
11
|
18
|
72
|
10
|
20
|
83
|
42
|
9.8
|
47
|
16
|
30
|
60
|
Yes
|
|
|
AAD50-M10
|
70
|
50
|
M10
|
10.5
|
25
|
11
|
18
|
72
|
20
|
35
|
83
|
42
|
9.8
|
47
|
16
|
30
|
60
|
Yes
|
|
|
AAD50-M12
|
70
|
50
|
M12
|
13
|
25
|
14
|
18
|
72
|
40
|
50
|
86
|
42
|
9.8
|
47
|
16
|
30
|
60
|
Yes
|
|
|
AAD70-M10
|
95
|
70
|
M10
|
10.5
|
28
|
11
|
18
|
83
|
20
|
35
|
94
|
52
|
11.2
|
58
|
18.5
|
15
|
60
|
Yes
|
|
|
AAD70-M12
|
95
|
70
|
M12
|
13
|
28
|
14
|
18
|
83
|
40
|
50
|
97
|
52
|
11.2
|
58
|
18.5
|
15
|
60
|
Yes
|
|
|
AAD70-M16
|
95
|
70
|
M16
|
17
|
28
|
17
|
18
|
83
|
90
|
90
|
100
|
52
|
11.2
|
58
|
18.5
|
15
|
60
|
Yes
|
|
|
AAD95-M10
|
120
|
95
|
M10
|
10.5
|
32
|
11
|
18
|
90
|
20
|
35
|
101
|
55
|
13.2
|
61
|
22
|
10
|
20
|
Yes
|
|
|
AAD95-M12
|
120
|
95
|
M12
|
13
|
32
|
14
|
18
|
90
|
40
|
50
|
104
|
55
|
13.2
|
61
|
22
|
10
|
20
|
Yes
|
|
|
AAD95-M16
|
120
|
95
|
M16
|
17
|
34
|
17
|
18
|
90
|
90
|
90
|
107
|
55
|
13.2
|
61
|
22
|
10
|
20
|
Yes
|
DIN EN 50182
|
|
AAD120-M10
|
150
|
120
|
M10
|
10.5
|
32
|
11
|
18
|
91
|
20
|
35
|
102
|
55
|
14.7
|
61
|
23
|
10
|
20
|
Yes
|
|
|
AAD120-M12
|
150
|
120
|
M12
|
13
|
32
|
14
|
18
|
91
|
40
|
50
|
105
|
55
|
14.7
|
61
|
23
|
10
|
20
|
Yes
|
|
|
AAD120-M16
|
150
|
120
|
M16
|
17
|
34
|
17
|
18
|
91
|
90
|
90
|
108
|
55
|
14.7
|
61
|
23
|
10
|
20
|
Yes
|
|
|
AAD150-M10
|
185
|
150
|
M10
|
10.5
|
35
|
11
|
20
|
104
|
20
|
35
|
115
|
60
|
16.5
|
66
|
25
|
8
|
16
|
Yes
|
|
|
AAD150-M12
|
185
|
150
|
M12
|
13
|
35
|
14
|
20
|
104
|
40
|
50
|
118
|
60
|
16.5
|
66
|
25
|
8
|
16
|
Yes
|
|
|
AAD150-M16
|
185
|
150
|
M16
|
17
|
35
|
17
|
20
|
104
|
90
|
90
|
121
|
60
|
16.5
|
66
|
25
|
8
|
16
|
|
|
|
AAD150-M20
|
185
|
150
|
M20
|
21
|
41
|
20
|
20
|
104
|
|
150
|
124
|
60
|
16.5
|
66
|
25
|
8
|
16
|
Yes
|
|
|
AAD185-M12
|
240
|
185
|
M12
|
13
|
40
|
14
|
20
|
105
|
40
|
50
|
119
|
60
|
18.3
|
66
|
28.5
|
15
|
15
|
Yes
|
|
|
AAD185-M16
|
240
|
185
|
M16
|
17
|
40
|
17
|
20
|
105
|
90
|
90
|
122
|
60
|
18.3
|
66
|
28.5
|
