N-M眼罩

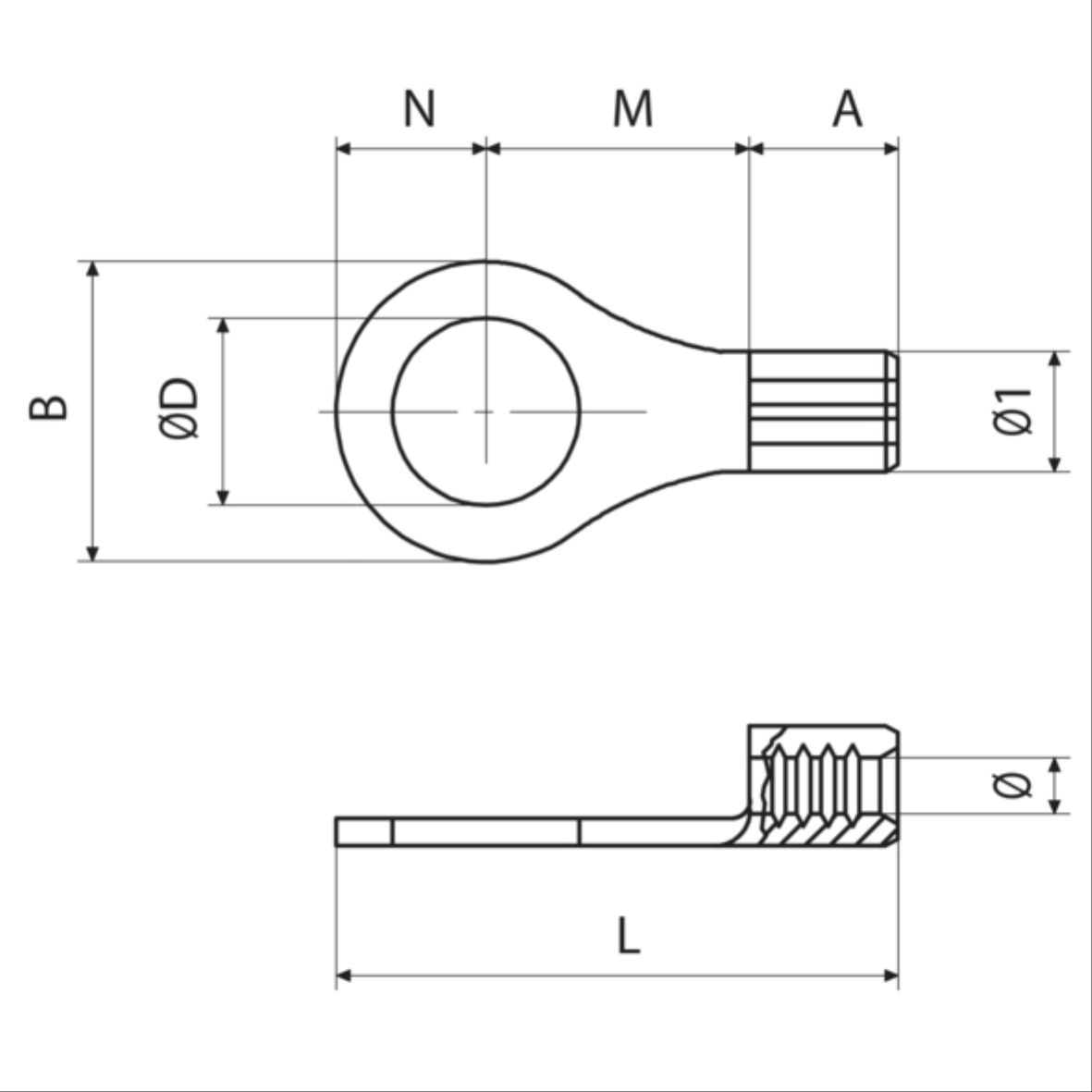

眼耳片，非绝缘，带非钎焊环，用于铜导线
N 系列电缆线耳由纯度超过 99.9 % 的电解铜带制成。
由于采用了退火和电解镀锡工艺，连接器更容易压缩，抗机械应力能力更强。
套圈内侧的滚花改善了与导体的接触，提高了整体抗拉强度。
产品特征
- 技术信息
- 材质和处理
- 包装信息
- 类别和数据排列
- 认证
产品型号
|
技术信息 |
重量和尺寸 |
包装信息 |
|---|
|
tipo
|
抗振性
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
标准包装单位 [pce]
|
|---|
|
RN-M2
|
|
M2
|
2.2
|
5.6
|
2.8
|
4.5
|
8.7
|
|
|
11.5
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M3
|
|
M3
|
3.2
|
5.6
|
2.8
|
4.5
|
8.7
|
0.5
|
0.5
|
11.5
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M3.5
|
|
M3.5
|
3.7
|
5.6
|
2.8
|
4.5
|
8.7
|
|
|
11.5
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M3.5/1
|
|
M3.5
|
3.7
|
6.2
|
3.1
|
7.1
|
11.3
|
|
|
14.4
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M4
|
是的
|
M4
|
4.3
|
7
|
3.5
|
6.5
|
10.7
|
|
|
14.2
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M4/3
|
|
M4
|
4.3
|
7.8
|
3.9
|
7.1
|
11.3
|
|
|
15.2
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M5
|
|
M5
|
5.3
|
7.8
|
3.9
|
7.1
|
11.3
|
|
|
15.2
|
4.2
|
1.8
|
5
|
3.4
|
7000
|
|
RN-M6
|
|
M6
|
6.4
|
9.4
|
4.7
|
8.1
|
12.3
|
5
|
7
|
17
|
4.2
|
1.8
|
5
|
3.4
|
6000
|
|
RN-M6/1
|
|
M6
|
6.4
|
12
|
6
|
10.3
|
14.5
|
5
|
7
|
20.5
|
4.2
|
1.8
|
5
|
3.4
|
4000
|
|
RN-M7
|
|
M7
|
7.2
|
9.4
|
4.7
|
8.1
|
12.3
|
|
|
17
|
4.2
|
1.8
|
5
|
3.4
|
6000
|
|
RN-M8
|
|
M8
|
8.4
|
12
|
6
|
10.3
|
14.5
|
10
|
20
|
20.5
|
4.2
|
1.8
|
5
|
3.4
|
4000
|
|
RN-M10
|
|
M10
|
10.5
|
15.5
|
7.75
|
13.05
|
17.25
|
20
|
35
|
25
|
4.2
|
1.8
|
5
|
3.4
|
2000
|
|
RN-M12
|
|
M12
|
13
|
18
|
9
|
15.5
|
19.7
|
40
|
50
|
28.7
|
4.2
|
1.8
|
5
|
3.4
|
2000
|
|
重量和尺寸 |
包装信息 |
|---|
|
tipo
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
标准包装单位 [pce]
|
|---|
|
BN-M2
|
M2
|
2.2
|
5.6
|
2.8
|
5
|
9.2
|
|
|
12
|
4.2
|
2.4
|
5
|
4
|
6000
|
|
BN-M3
|
M3
|
3.2
|
5.6
|
2.8
|
5
|
9.2
|
0.5
|
0.5
|
12
|
4.2
|
2.4
|
5
|
4
|
6000
|
|
BN-M3.5
|
M3.5
|
3.7
|
5.6
|
2.8
|
5
|
9.2
|
|
|
12
|
4.2
|
2.4
|
5
|
4
|
6000
|
|
BN-M3.5/1
|
M3.5
|
3.7
|
6.2
|
3.1
|
6.5
|
10.7
|
|
|
13.8
|
4.2
|
2.4
|
5
|
4
|
6000
|
|
BN-M4
|
M4
|
4.3
|
8
|
4
|
6.5
|
10.7
|
|
|
14.7
|
4.2
|
2.4
|
5
|
4
|
5000
|
|
BN-M5
|
M5
|
5.3
|
8
|
4
|
7.5
|
11.7
|
|
|
15.7
|
4.2
|
2.4
|
5
|
4
|
5000
|
|
BN-M6
|
M6
|
6.4
|
9.4
|
4.7
|
8.6
|
12.8
|
5
|
7
|
17.5
|
4.2
|
2.4
|
5
|
4
|
5000
|
|
BN-M6/1
|
M6
|
6.4
|
12
|
6
|
10.3
|
14.5
|
5
|
7
|
20.5
|
4.2
|
2.4
|
5
|
4
|
5000
|
|
BN-M7
|
M7
|
7.2
|
10
|
5
|
7.8
|
12
|
|
|
17
|
4.2
|
2.4
|
5
|
4
|
5000
|
|
BN-M8
|
M8
|
8.4
|
12
|
6
|
10.3
|
14.5
|
10
|
20
|
20.5
|
4.2
|
2.4
|
5
|
4
|
4000
|
|
BN-M10
|
M10
|
10.5
|
15.5
|
7.75
|
13.05
|
17.25
|
20
|
35
|
25
|
4.2
|
2.4
|
5
|
4
|
2500
|
|
BN-M12
|
M12
|
13
|
18
|
9
|
15.5
|
19.7
|
40
|
50
|
28.7
|
4.2
|
2.4
|
5
|
4
|
2000
|
|
重量和尺寸 |
包装信息 |
|---|
|
tipo
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
I [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
标准包装单位 [pce]
|
|---|
|
GN-M3
|
M3
|
3.2
|
8
|
4
|
8.1
|
14.5
|
0.5
|
0.5
|
18.5
|
8
|
3.6
|
7
|
5.6
|
3000
|
|
GN-M3.5
|
M3.5
|
3.7
|
8
<
