HR-LN眼罩

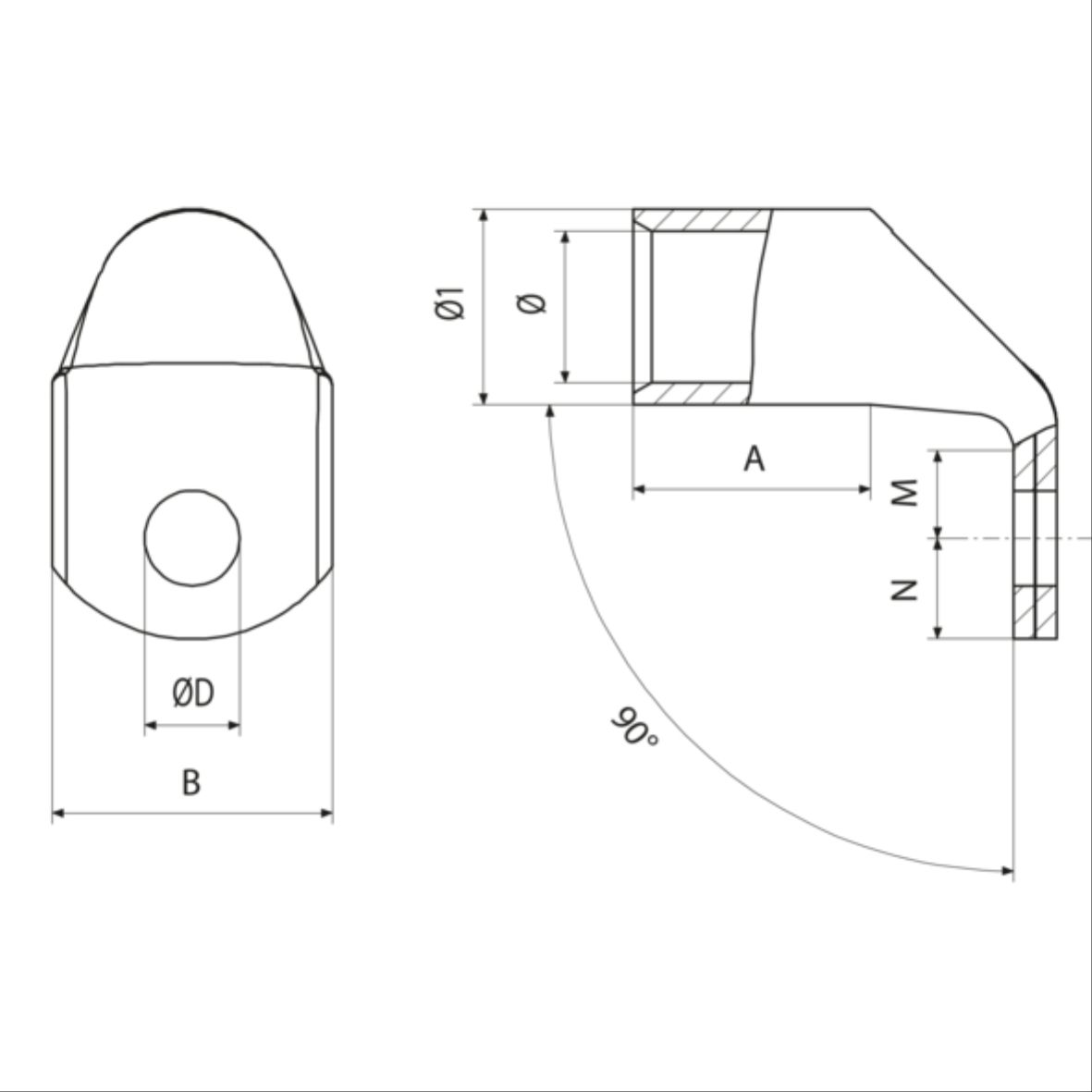

眼形接线片，90°弯曲，用于铜导线
HR-LN眼罩 眼形接线片，90°弯曲，用于铜导线
产品型号
|
技术信息 |
重量和尺寸 |
包装信息 |
认证 |
|---|
|
tipo
|
压接的几何形态
|
电缆截面范围 [mm²]
|
螺栓直径
|
ØD [mm]
|
B [mm]
|
N [mm]
|
M [mm]
|
紧固扭矩（建议值？UL?) (高导电螺钉) [nm]
|
紧固扭矩（建议值？UL?) (8.8级螺钉) [nm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
符合ROHS标准
|
参考标准
|
UL 标准
|
|---|
|
HR6-L4N
|
六角; W 型缩进
|
6
|
M4
|
4.3
|
10
|
7.5
|
8.5
|
|
|
10.5
|
3.5
|
12
|
6.5
|
100
|
400
|
Yes
|
|
|
|
HR6-L5N
|
六角; W 型缩进
|
6
|
M5
|
5.3
|
10
|
7.5
|
8.5
|
|
|
10.5
|
3.5
|
12
|
6.5
|
100
|
400
|
Yes
|
|
|
|
HR6-L6N
|
六角; W 型缩进
|
6
|
M6
|
6.4
|
11.5
|
7.5
|
8.5
|
5
|
7
|
10.5
|
3.5
|
12
|
6.5
|
100
|
400
|
Yes
|
|
|
|
HR6-L8N
|
六角; W 型缩进
|
6
|
M8
|
8.4
|
15
|
10
|
11
|
10
|
20
|
10.5
|
3.5
|
12
|
6.5
|
100
|
400
|
Yes
|
|
|
|
HR6-L10N
|
六角; W 型缩进
|
6
|
M10
|
10.5
|
17
|
12
|
13
|
20
|
35
|
10.5
|
3.5
|
12
|
6.5
|
100
|
400
|
Yes
|
|
|
|
HR6-L12N
|
六角; W 型缩进
|
6
|
M12
|
13.2
|
19
|
13.5
|
13.5
|
40
|
50
|
10.5
|
3.5
|
12
|
6.5
|
100
|
400
|
Yes
|
|
|
|
HR10-L4N
|
六角; W 型缩进
|
10
|
M4
|
4.3
|
12
|
7.5
|
8.5
|
|
|
10.5
|
4.5
|
12
|
7
|
100
|
400
|
Yes
|
|
|
|
HR10-L5N
|
六角; W 型缩进
|
10
|
M5
|
5.3
|
12
|
7.5
|
8.5
|
|
|
10.5
|
4.5
|
12
|
7
|
100
|
400
|
Yes
|
|
|
|
HR10-L6N
|
六角; W 型缩进
|
10
|
M6
|
6.4
|
12
|
7.5
|
8.5
|
5
|
7
|
10.5
|
4.5
|
12
|
7
|
100
|
400
|
Yes
|
|
|
|
HR10-L8N
|
六角; W 型缩进
|
10
|
M8
|
8.4
|
15
|
10
|
11
|
10
|
20
|
10.5
|
4.5
|
12
|
7
|
100
|
400
|
Yes
|
|
|
|
HR10-L10N
|
六角; W 型缩进
|
10
|
M10
|
10.5
|
17
|
12
|
13
|
20
|
35
|
10.5
|
4.5
|
12
|
7
|
100
|
400
|
Yes
|
|
|
|
HR10-L12N
|
六角; W 型缩进
|
10
|
M12
|
13.2
|
19
|
13.5
|
16
|
40
|
50
|
10.5
|
4.5
|
12
|
7
|
100
|
400
|
Yes
|
|
|
|
HR16-L5N
|
六角; W 型缩进
|
16
|
M5
|
5.3
|
12
|
7.5
|
8.5
|
|
|
12
|
5.5
|
14
|
8.5
|
100
|
400
|
Yes
|
|
|
|
HR16-L6N
|
六角; W 型缩进
|
16
|
M6
|
6.4
|
12
|
7.5
|
8.5
|
5
|
7
|
12
|
5.5
|
14
|
8.5
|
100
|
400
|
Yes
|
|
|
|
HR16-L8N
|
六角; W 型缩进
|
16
|
M8
|
8.4
|
15
|
10
|
11
|
10
|
20
|
12
|
5.5
|
14
|
8.5
|
100
|
400
|
Yes
|
|
|
|
HR16-L10N
|
六角; W 型缩进
|
16
|
M10
|
10.5
|
17
|
12
|
13
|
20
|
35
|
12
|
5.5
|
14
|
8.5
|
100
|
400
|
Yes
|
|
|
|
HR16-L12N
|
六角; W 型缩进
|
16
|
M12
|
13.2
|
19
|
13.5
|
16
|
40
|
50
|
12
|
5.5
|
14
|
8.5
|
100
|
400
|
Yes
|
|
|
|
HR25-L5N
|
六角; W 型缩进
|
25
|
M5
|
5.3
|
14
|
7.5
|
9
|
|
|
13
|
7
|
15
|
10
|
100
|
400
|
Yes
|
|
|
|
HR25-L6N
|
六角; W 型缩进
|
25
|
M6
|
6.4
|
14
|
7.5
|
9
|
5
|
7
|
13
|
7
|
15
|
10
|
100
|
400
|
Yes
|
|
|
|
HR25-L8N
|
六角; W 型缩进
|
25
|
M8
|
8.4
|
15
|
10
|
11
|
10
|
20
|
13
|
7
|
15
|
10
|
100
|
400
|
Yes
|
UL 486A-486B
|
UL486A-486B
|
|
HR25-L10N
|
六角; W 型缩进
|
25
|
M10
|
10.5
|
18
|
12
|
13
|
20
|
35
|
13
|
7
|
15
|
10
|
100
|
400
|
Yes
|
|
|
|
HR25-L12N
|
六角; W 型缩进
|
25
|
M12
|
13.2
|
19
|
13
|
14
|
40
|
50
|
13
|
7
|
15
|
10
|
100
|
400
|
Yes
|
|
|
|
HR35-L6N
|
六角; W 型缩进
|
35
|
M6
|
6.4
|
17
|
7.5
|
9
|
5
|
7
|
15.5
|
8.5
|
18
|
12
|
50
|
200
|
Yes
|
|
|
|
HR35-L8N
|
六角; W 型缩进
|
35
|
M8
|
8.4
|
17
|
10
|
11
|
10
|
20
|
15.5
|
8.5
|
18
|
12
|
50
|
200
|
Yes
|
|
|
|
HR35-L10N
|
六角; W 型缩进
|
35
|
M10
|
10.5
|
19
|
12
|
13
|
20
|
35
|
15.5
|
8.5
|
18
|
12
|
50
|
200
|
Yes
|
|
|
|
HR35-L12N
|
六角; W 型缩进
|
35
|
M12
|
13.2
|
21
|
13
|
14
|
40
|
50
|
15.5
|
8.5
|
18
|
12
|
50
|
200
|
Yes
|
|
|
