HR-45N 眼耳，45°弯曲，用于铜导线
| 技术信息 | 重量和尺寸 | 包装信息 | 认证 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

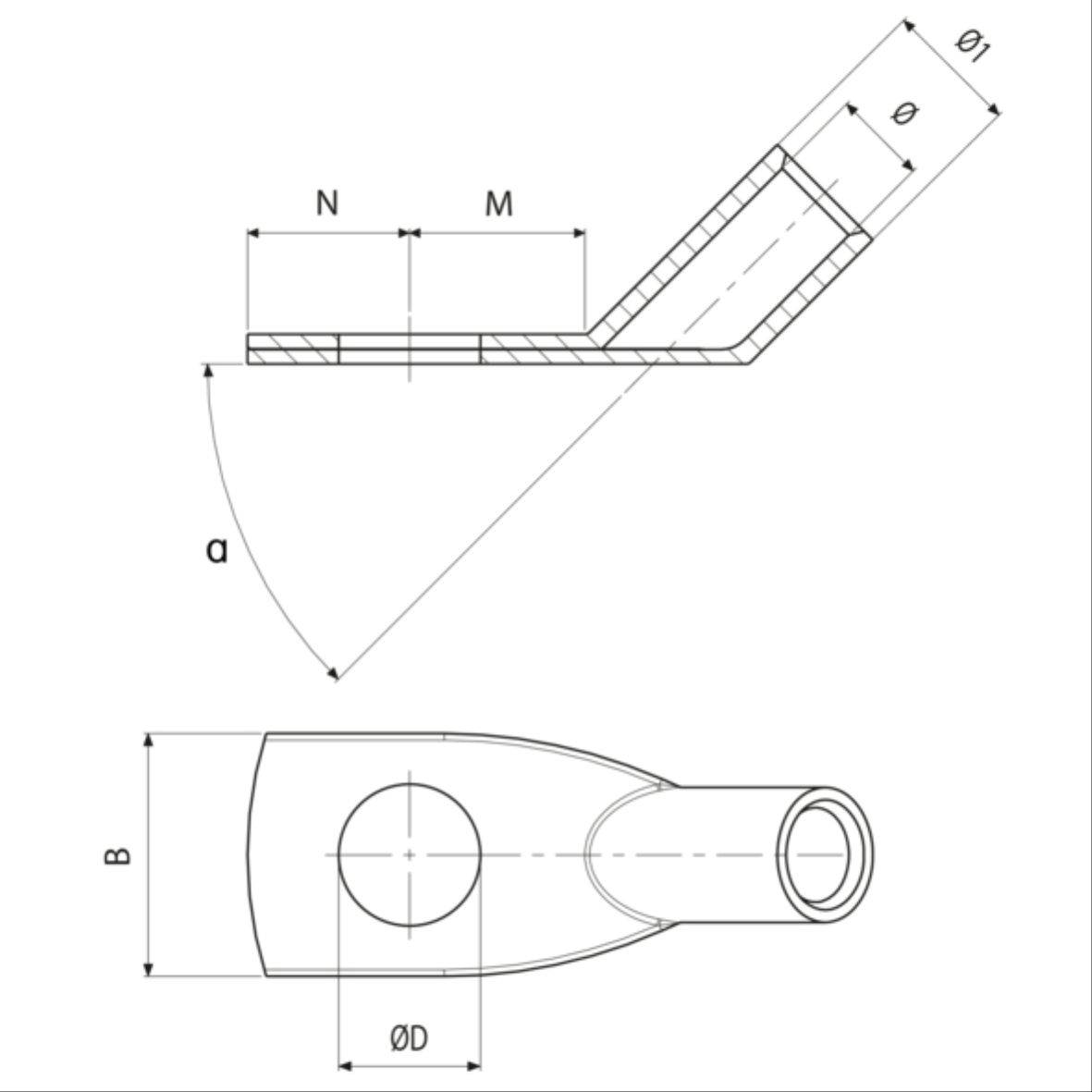

| tipo | 压接的几何形态 | 电缆截面范围 [mm²] | 螺栓直径 | ØD [mm] | B [mm] | N [mm] | M [mm] | 紧固扭矩（建议值？UL?) (高导电螺钉) [nm] | 紧固扭矩（建议值？UL?) (8.8级螺钉) [nm] | A [mm] | Ø [mm] | 电缆剥皮长度 [mm] | Ø1 [mm] | 最小包装单元 [pce] | 标准包装单位 [pce] | 符合ROHS标准 | 参考标准 | UL 标准 |
| HR6-4/45N | 六角; W 型缩进 | 6 | M4 | 4.3 | 8.5 | 7.5 | 8.5 | 8.5 | 3.5 | 10 | 6.5 | 100 | 400 | Yes | ||||
| HR6-5/45N | 六角; W 型缩进 | 6 | M5 | 5.3 | 10 | 7.5 | 8.5 | 10.5 | 3.5 | 12 | 6.5 | 100 | 400 | Yes | ||||
| HR6-6/45N | 六角; W 型缩进 | 6 | M6 | 6.4 | 11.5 | 7.5 | 8.5 | 5 | 7 | 10.5 | 3.5 | 12 | 6.5 | 100 | 400 | Yes | ||
| HR6-8/45N | 六角; W 型缩进 | 6 | M8 | 8.4 | 15 | 10 | 11 | 10 | 20 | 10.5 | 3.5 | 12 | 6.5 | 100 | 400 | Yes | ||
| HR6-10/45N | 六角; W 型缩进 | 6 | M10 | 10.5 | 17 | 12 | 13 | 20 | 35 | 10.5 | 3.5 | 12 | 6.5 | 100 | 400 | Yes | ||
| HR6-12/45N | 六角; W 型缩进 | 6 | M12 | 13.2 | 19 | 13.5 | 16 | 40 | 50 | 10.5 | 3.5 | 12 | 6.5 | 100 | 400 | Yes | ||
| HR10-4/45N | 六角; W 型缩进 | 10 | M4 | 4.3 | 12 | 7.5 | 8.5 | 8.5 | 4.5 | 10 | 7 | 100 | 400 | Yes | ||||
| HR10-5/45N | 六角; W 型缩进 | 10 | M5 | 5.3 | 12 | 7.5 | 8.5 | 10.5 | 4.5 | 12 | 7 | 100 | 400 | Yes | ||||
| HR10-6/45N | 六角; W 型缩进 | 10 | M6 | 6.4 | 12 | 7.5 | 8.5 | 5 | 7 | 10.5 | 4.5 | 12 | 7 | 100 | 400 | Yes | ||
| HR10-8/45N | 六角; W 型缩进 | 10 | M8 | 8.4 | 15 | 10 | 11 | 10 | 20 | 10.5 | 4.5 | 12 | 7 | 100 | 400 | Yes | ||
| HR10-10/45N | 六角; W 型缩进 | 10 | M10 | 10.5 | 17 | 12 | 13 | 20 | 35 | 10.5 | 4.5 | 12 | 7 | 100 | 400 | Yes | ||
| HR10-12/45N | 六角; W 型缩进 | 10 | M12 | 13.2 | 19 | 13.5 | 16 | 40 | 50 | 10.5 | 4.5 | 12 | 7 | 100 | 400 | Yes | ||
| HR16-5/45N | 六角; W 型缩进 | 16 | M5 | 5.3 | 12 | 7.5 | 8.5 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||||
| HR16-6/45N | 六角; W 型缩进 | 16 | M6 | 6.4 | 12 | 7.5 | 8.5 | 5 | 7 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | UL 486A-486B | UL486A-486B |
| HR16-8/45N | 六角; W 型缩进 | 16 | M8 | 8.4 | 15 | 10 | 11 | 10 | 20 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HR16-10/45N | 六角; W 型缩进 | 16 | M10 | 10.5 | 17 | 12 | 13 | 20 | 35 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HR16-12/45N | 六角; W 型缩进 | 16 | M12 | 13.2 | 19 | 13.5 | 16 | 40 | 50 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HR25-5/45N | 六角; W 型缩进 | 25 | M5 | 5.3 | 14 | 7.5 | 9 | 13 | 7 | 15 | 10 | 100 | 400 | Yes | ||||
| HR25-6/45N | 六角; W 型缩进 | 25 | M6 | 6.4 | 14 | 7.5 | 9 | 5 | 7 | 13 | 7 | 15 | 10 | 100 | 400 | Yes | ||
| HR25-8/45N | 六角; W 型缩进 | 25 | M8 | 8.4 | 15 | 10 | 11 | 10 | 20 | 13 | 7 | 15 | 10 | 100 | 400 | Yes | ||
| HR25-10/45N | 六角; W 型缩进 | 25 | M10 | 10.5 | 18 | 12 | 13 | 20 | 35 | 13 | 7 | 15 | 10 | 100 | 400 | Yes | ||
| HR25-12/45N | 六角; W 型缩进 | 25 | M12 | 13.2 | 19 | 13 | 14 | 40 | 50 | 13 | 7 | 15 | 10 | 100 | 400 | Yes | ||
| HR35-6/45N | 六角; W 型缩进 | 35 | M6 | 6.4 | 17 | 7.5 | 9 | 5 | 7 | 15.5 | 8.5 | 18 | 12 | 50 | 200 | Yes | ||
| HR35-8/45N | 六角; W 型缩进 | 35 | M8 | 8.4 | 17 | 10 | 11 | 10 | 20 | 15.5 | 8.5 | 18 | 12 | 50 | 200 | Yes | ||
| HR35-10/45N | 六角; W 型缩进 | 35 | M10 | 10.5 | 19 | 12 | 13 | 20 | 35 | 15.5 | 8.5 | 18 | 12 | 50 | 200 | Yes | ||
| HR35-12/45N | 六角; W 型缩进 | 35 | M12 | 13.2 | 21 | 13 | 14 | 40 | 50 | 15.5 | 8.5 | 18 | 12 | 50 | 200 | Yes | ||
