MT-C中压电缆接线片
带切口的中压电缆接线片，用于铜导体
MT-C 系列电缆耳由纯度超过 99.9% 的电解圆铜制成。它们是连接中压柄连接设备的理想选择，最高电压可达 35 kV。
由于采用了退火和电解镀锡工艺，连接器更容易压缩，抗机械应力能力更强。
在室外使用时，没有检查孔有助于防止湿气和灰尘进入。
产品型号
|
技术信息 |
重量和尺寸 |
包装信息 |
类别和数据排列 |
认证 |
|---|
|

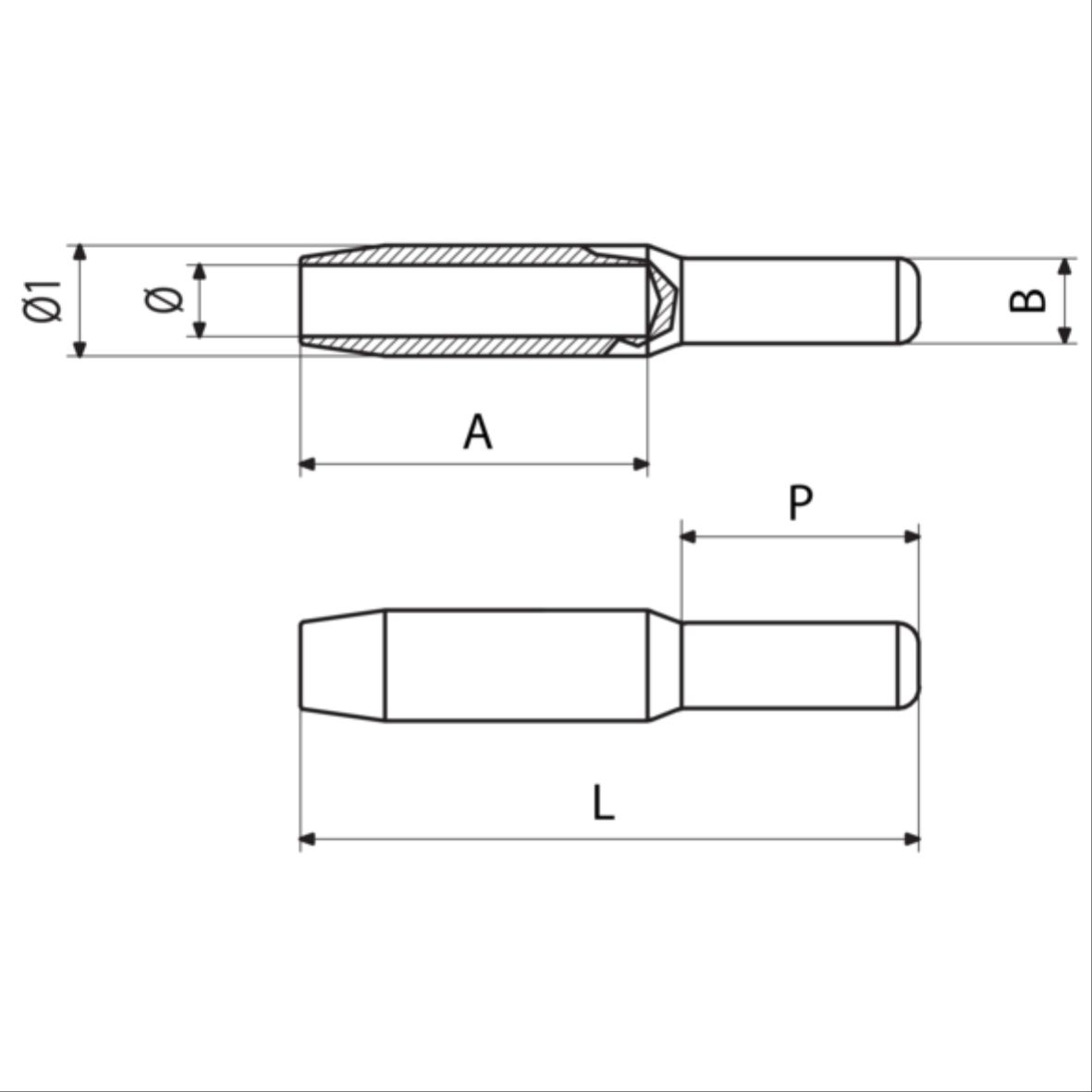

tipo
|
电缆截面范围 [mm²]
|
B [mm]
|
P [mm]
|
L [mm]
|
A [mm]
|
Ø [mm]
|
电缆剥皮长度 [mm]
|
Ø1 [mm]
|
最小包装单元 [pce]
|
标准包装单位 [pce]
|
海关编码
|
符合ROHS标准
|
|---|
|
MT25-C8
|
25
|
8
|
35
|
80
|
41
|
6.8
|
46
|
10
|
3
|
90
|
85359000
|
Yes
|
|
MT40S-C8
|
30 - 40
|
8
|
35
|
80
|
41
|
8.2
|
46
|
13
|
3
|
90
|
85359000
|
Yes
|
|
MT40S-C10
|
30 - 40
|
10
|
35
|
80
|
41
|
9.5
|
45
|
13
|
3
|
90
|
85359000
|
|
|
MT50R-C8
|
50
|
8
|
35
|
80
|
41
|
13
|
46
|
13
|
3
|
90
|
85359000
|
|
|
MT50R-C10
|
50
|
10
|
35
|
80
|
41
|
8.8
|
46
|
13
|
3
|
90
|
85359000
|
|
|
MT50S-C8
|
50
|
8
|
35
|
80
|
41
|
9.5
|
46
|
13
|
3
|
90
|
85359000
|
Yes
|
|
MT50S-C10
|
50
|
10
|
35
|
80
|
41
|
9.5
|
46
|
13
|
3
|
90
|
85359000
|
Yes
|
|
MT70S-C10
|
63 - 70
|
10
|
35
|
90
|
50
|
11.2
|
55
|
20
|
3
|
30
|
85359000
|
Yes
|
|
MT95R-C10
|
80 - 95
|
10
|
45
|
110
|
60
|
12
|
66
|
20
|
3
|
60
|
85359000
|
Yes
|
|
MT95R-C12
|
80 - 95
|
12
|
45
|
110
|
60
|
12
|
66
|
20
|
3
|
60
|
85359000
|
Yes
|
|
MT95S-C10
|
95 - 100
|
10
|
45
|
110
|
60
|
13.5
|
66
|
20
|
3
|
45
|
85359000
|
Yes
|
|
MT95S-C12
|
95 - 100
|
12
|
45
|
110
|
60
|
13.5
|
66
|
20
|
3
|
60
|
85359000
|
Yes
|
|
MT150R-C12
|
120 - 150
|
12
|
45
|
110
|
60
|
15
|
66
|
23
|
3
|
45
|
85359000
|
Yes
|
|
MT150R-C16
|
120 - 150
|
16
|
45
|
110
|
60
|
16.5
|
66
|
23
|
3
|
30
|
85359000
|
|
|
MT150S-C12
|
150 - 160
|
12
|
45
|
110
|
60
|
16.5
|
66
|
23
|
3
|
60
|
85359000
|
Yes
|
|
MT150S-C16
|
120 - 150
|
16
|
45
|
110
|
60
|
15
|
66
|
23
|
3
|
30
|
85359000
|
|
|
MT200R-C10
|
160 - 200
|
10
|
45
|
110
|
60
|
17
|
66
|
23
|
3
|
30
|
85359000
|
|
|
MT200R-C16
|
160 - 200
|
16
|
45
|
110
|
60
|
17
|
66
|
23
|
3
|
30
|
85359000
|
Yes
|
|
MT240R-C12
|
200 - 240
|
12
|
50
|
115
|
60
|
19.5
|
66
|
30
|
3
|
30
|
85359000
|
Yes
|
|
MT240R-C16
|
200 - 240
|
16
|
50
|
115
|
60
|
19.5
|
66
|
30
|
3
|
30
|
85359000
|
Yes
|
|
MT315R-C16
|
240 - 315
|
16
|
50
|
115
|
60
|
21.5
|
66
|
30
|
3
|
30
|
85359000
|
Yes
|
|
MT315S-C16
|
315
|
16
|
60
|
130
|
60
|
23.7
|
66
|
30
|
3
|
30
|
85359000
|
Yes
|
|
MT40S-C14-80
|
30 - 40
|
14
|
80
|
123
|
41
|
8.2
|
46
|
13
|
3
|
30
|
85359000
|
|
|
MT50S-C14-80
|
50
|
14
|
80
|
123
|
41
|
9.5
|
46
|
13
|
3
|
30
|
85359000
|
Yes
|
|
MT95S-C14-80
|
95 - 100
|
14
|
80
|
145
|
60
|
13.5
|
66
|
20
|
3
|
60
|
85359000
|
Yes
|
|
MT150S-C14-80
|
150 - 160
|
14
|
80
|
145
|
60
|
16.5
|
66
|
23
|
3
|
45
|
85359000
|
Yes
|
|
MT35-C8
|
35
|
8
|
35
|
80
|
41
|
8.2
|
46
|
13
|
|
|
|
Yes
|
|
MT35-C10
|
35
|
10
|
35
|
80
|
41
|
8.2
|
46
|
13
|
|
|
|
Yes
|
|
MT35-C14-80
|
35
|
14
|
80
|
123
|
41
|
8.2
|
46
|
13
|
|
|
|
|
|
MT50-C8
|
50
|
8
|
35
|
80
|
41
|
9.5
|
46
|
13
|
|
|
|
|
|
MT50-C10
|
50
|
10
|
35
|
80
|
41
|
9.5
|
46
|
13
|
|
|
|
|
|
MT50-C14-80
|
50
|
14
|
80
|
123
|
41
|
9.5
|
46
|
13
|
|
|
|
|
|
MT70-C10
|
70
|
10
|
35
|
90
|
50
|
11.2
|
55
|
20
|
|
|
|
Yes
|
|
MT95-C10
|
95
|
10
|
45
|
110
|
60
|
13.5
|
66
|
20
|
|
|
|
Yes
|
|
MT95-C12
|
95
|
12
|
45
|
110
|
60
|
13.5
|
66
|
20
|
|
|
|
Yes
|
|
MT95-C14-80
|
95 - 100
|
14
|
80
|
145
|
60
|
13.5
|
66
|
20
|
|
|
|
Yes
|
|
MT150-C10
|
150
|
10
|
45
|
110
|
60
|
16.5
|
66
|
23
|
|
|
|
Yes
|
|
MT120-C12
|
120
|
12
|
45
|
