HRS-N 眼耳，带间谍孔，用于铜导线
| 技术信息 | 重量和尺寸 | 包装信息 | 认证 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

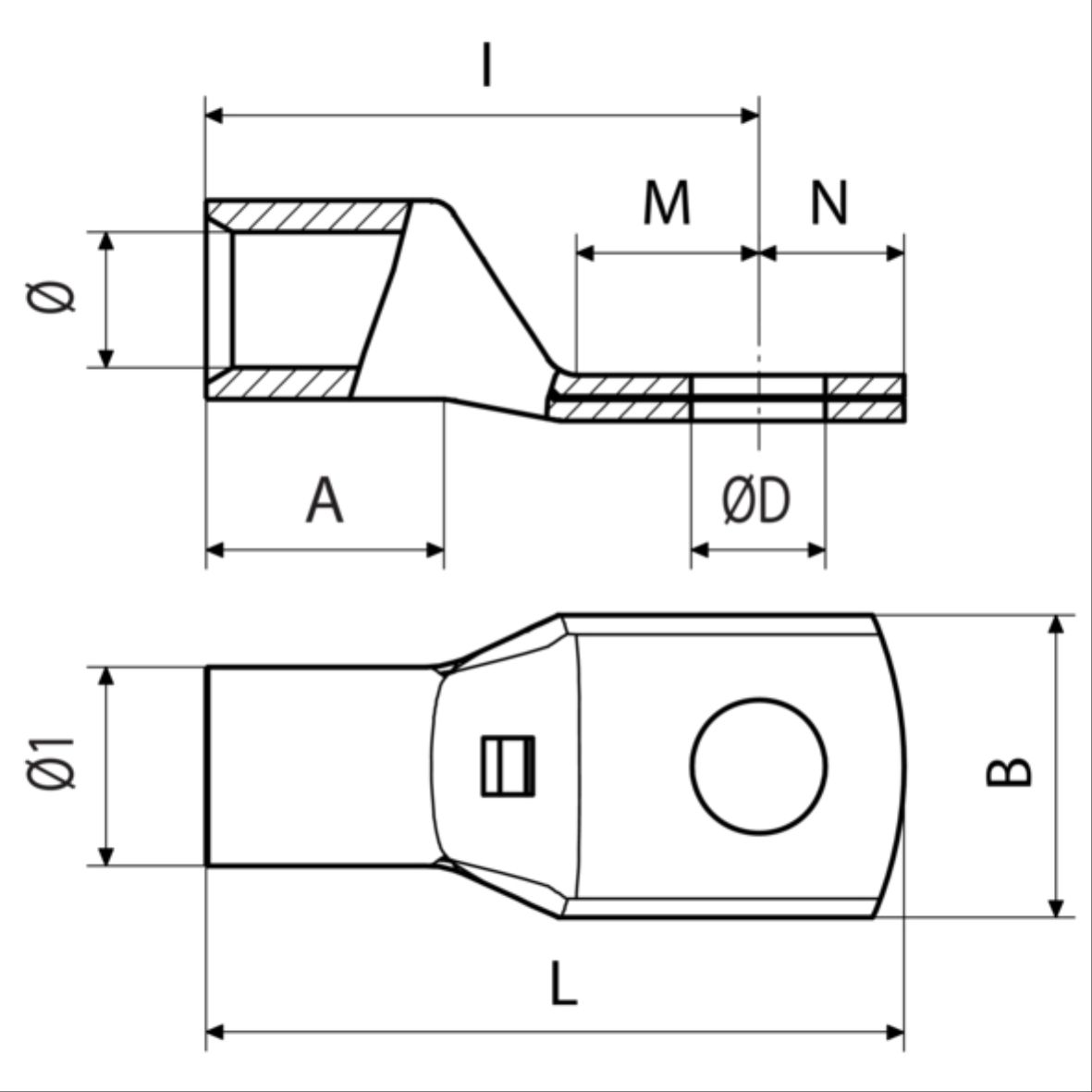

| tipo | 压接的几何形态 | 电缆截面范围 [mm²] | 螺栓直径 | ØD [mm] | B [mm] | N [mm] | M [mm] | I [mm] | 紧固扭矩（建议值？UL?) (高导电螺钉) [nm] | 紧固扭矩（建议值？UL?) (8.8级螺钉) [nm] | L [mm] | A [mm] | Ø [mm] | 电缆剥皮长度 [mm] | Ø1 [mm] | 最小包装单元 [pce] | 标准包装单位 [pce] | 符合ROHS标准 | 参考标准 | UL 标准 |
| HRS6-4N | 六角; W 型缩进 | 6 | M4 | 4.3 | 10 | 6.5 | 7.5 | 21 | 27.5 | 10 | 3.5 | 11 | 6.5 | 100 | 800 | Yes | ||||
| HRS6-5N | 六角; W 型缩进 | 6 | M5 | 5.3 | 10 | 6.5 | 7.5 | 21 | 27.5 | 10 | 3.5 | 11 | 6.5 | 100 | 800 | Yes | ||||
| HRS6-6N | 六角; W 型缩进 | 6 | M6 | 6.4 | 11.5 | 6.5 | 7.5 | 21 | 5 | 7 | 27.5 | 10 | 3.5 | 11 | 6.5 | 100 | 800 | Yes | ||
| HRS6-8N | 六角; W 型缩进 | 6 | M8 | 8.4 | 15 | 10 | 10 | 23.5 | 10 | 20 | 33.5 | 10 | 3.5 | 11 | 6.5 | 100 | 800 | Yes | ||
| HRS6-10N | 六角; W 型缩进 | 6 | M10 | 10.5 | 17 | 12 | 12 | 25.5 | 20 | 35 | 37.5 | 10 | 3.5 | 11 | 6.5 | 100 | 800 | Yes | ||
| HRS6-12N | 六角; W 型缩进 | 6 | M12 | 13.2 | 19 | 13.5 | 15 | 28.5 | 40 | 50 | 42 | 10 | 3.5 | 11 | 6.5 | 100 | 800 | Yes | ||
| HRS10-4N | 六角; W 型缩进 | 10 | M4 | 4.3 | 12 | 6.5 | 7.5 | 22 | 28.5 | 10 | 4.5 | 11 | 7 | 100 | 600 | Yes | ||||
| HRS10-5N | 六角; W 型缩进 | 10 | M5 | 5.3 | 12 | 6.5 | 7.5 | 22 | 28.5 | 10 | 4.5 | 11 | 7 | 100 | 600 | Yes | ||||
| HRS10-6N | 六角; W 型缩进 | 10 | M6 | 6.4 | 12 | 6.5 | 7.5 | 22 | 5 | 7 | 28.5 | 10 | 4.5 | 11 | 7 | 100 | 600 | Yes | ||
| HRS10-8N | 六角; W 型缩进 | 10 | M8 | 8.4 | 15 | 10 | 10 | 24.5 | 10 | 20 | 34.5 | 10 | 4.5 | 11 | 7 | 100 | 600 | Yes | ||
| HRS10-10N | 六角; W 型缩进 | 10 | M10 | 10.5 | 17 | 12 | 12 | 26.5 | 20 | 35 | 38.5 | 10 | 4.5 | 11 | 7 | 100 | 600 | Yes | ||
| HRS10-12N | 六角; W 型缩进 | 10 | M12 | 13.2 | 19 | 13 | 13 | 27.5 | 40 | 50 | 40.5 | 10 | 4.5 | 11 | 7 | 100 | 600 | Yes | ||
| HRS16-5N | 六角; W 型缩进 | 16 | M5 | 5.3 | 12 | 6 | 7 | 25.5 | 31.5 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||||
| HRS16-6N | 六角; W 型缩进 | 16 | M6 | 6.4 | 12 | 6.5 | 7.5 | 26 | 5 | 7 | 32.5 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HRS16-8N | 六角; W 型缩进 | 16 | M8 | 8.4 | 15 | 8.5 | 9.5 | 28 | 10 | 20 | 36.5 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HRS16-10N | 六角; W 型缩进 | 16 | M10 | 10.5 | 17 | 10.5 | 11.5 | 30 | 20 | 35 | 40.5 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HRS16-12N | 六角; W 型缩进 | 16 | M12 | 13.2 | 19 | 12 | 13 | 31.5 | 40 | 50 | 43.5 | 12 | 5.5 | 14 | 8.5 | 100 | 400 | Yes | ||
| HRS25-5N | 六角; W 型缩进 | 25 | M5 | 5.3 | 14 | 7.5 | 7.5 | 29.5 | 37 | 15 | 7 | 17 | 10 | 100 | 200 | Yes | ||||
| HRS25-6N | 六角; W 型缩进 | 25 | M6 | 6.4 | 14 | 7.5 | 7.5 | 29.5 | 5 | 7 | 37 | 15 | 7 | 17 | 10 | 100 | 200 | Yes | ||
| HRS25-8N | 六角; W 型缩进 | 25 | M8 | 8.4 | 16 | 10 | 10 | 32 | 10 | 20 | 42 | 15 | 7 | 17 | 10 | 100 | 200 | Yes | ||
| HRS25-10N | 六角; W 型缩进 | 25 | M10 | 10.5 | 18 | 12 | 12 | 34 | 20 | 35 | 46 | 15 | 7 | 17 | 10 | 100 | 200 | Yes | ||
| HRS25-12N | 六角; W 型缩进 | 25 | M12 | 13.2 | 19 | 13 | 13 | 35 | 40 | 50 | 48 | 15 | 7 | 17 | 10 | 100 | 200 | Yes | ||
| HRS25-14N | 六角; W 型缩进 | 25 | M14 | 15 | 21 | 14.5 | 14 | 36 | 65 | 70 | 50.5 | 15 | 7 | 17 | 10 | 100 | 200 | Yes | ||
| HRS35-6N | 六角; W 型缩进 | 35 | M6 | 6.4 | 17 | 7.5 | 7.5 | 31.5 | 5 | |||||||||||
